Underwater Stereo Camera

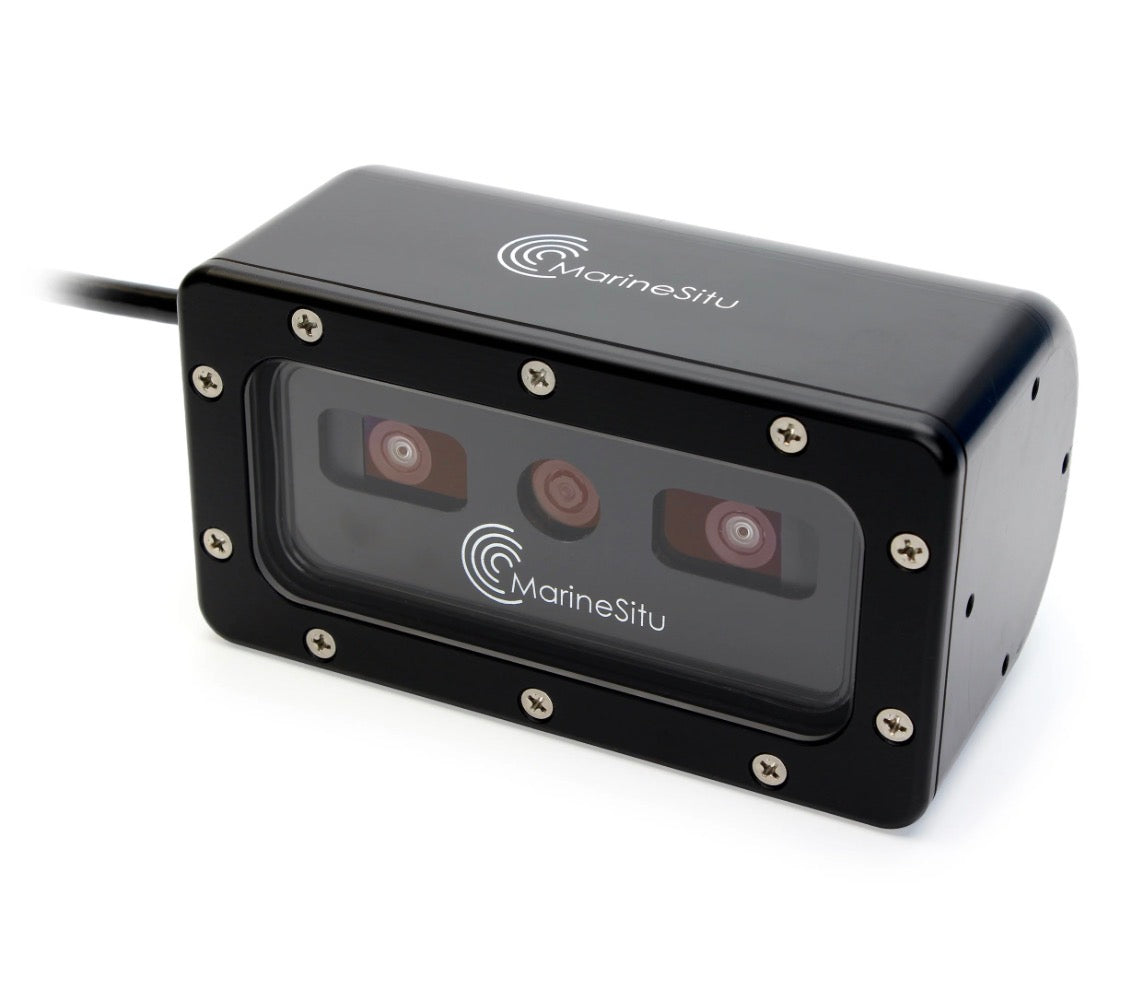

The MarineSitu C3 is an underwater stereo vision camera that captures depth information and high-resolution color imagery. It uses a pair of stereo cameras to perceive depth, along with a center color camera for high resolution imagery, all housed in a rugged enclosure rated to 1000 meters depth. Designed for marine robotics and research applications.

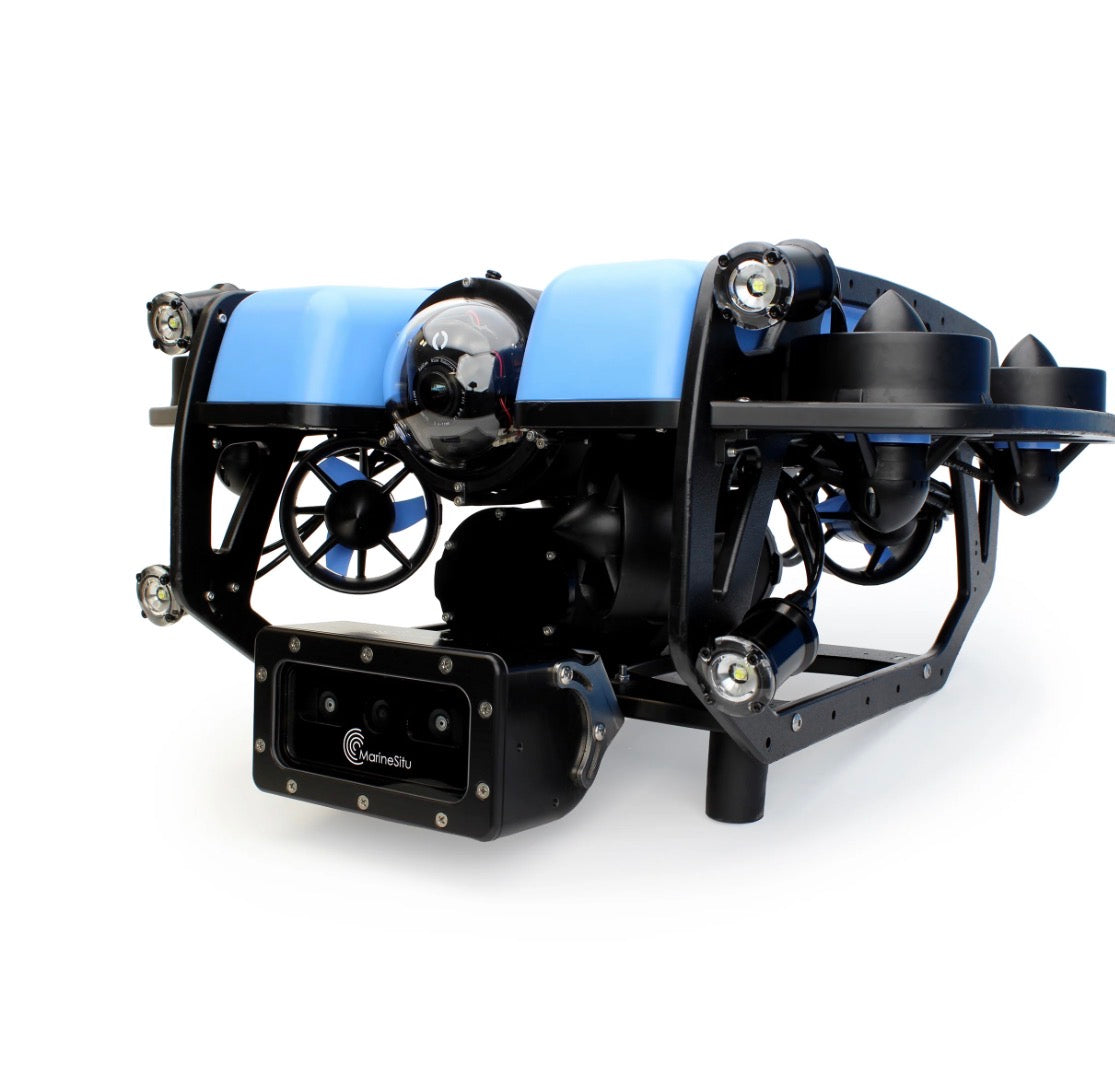

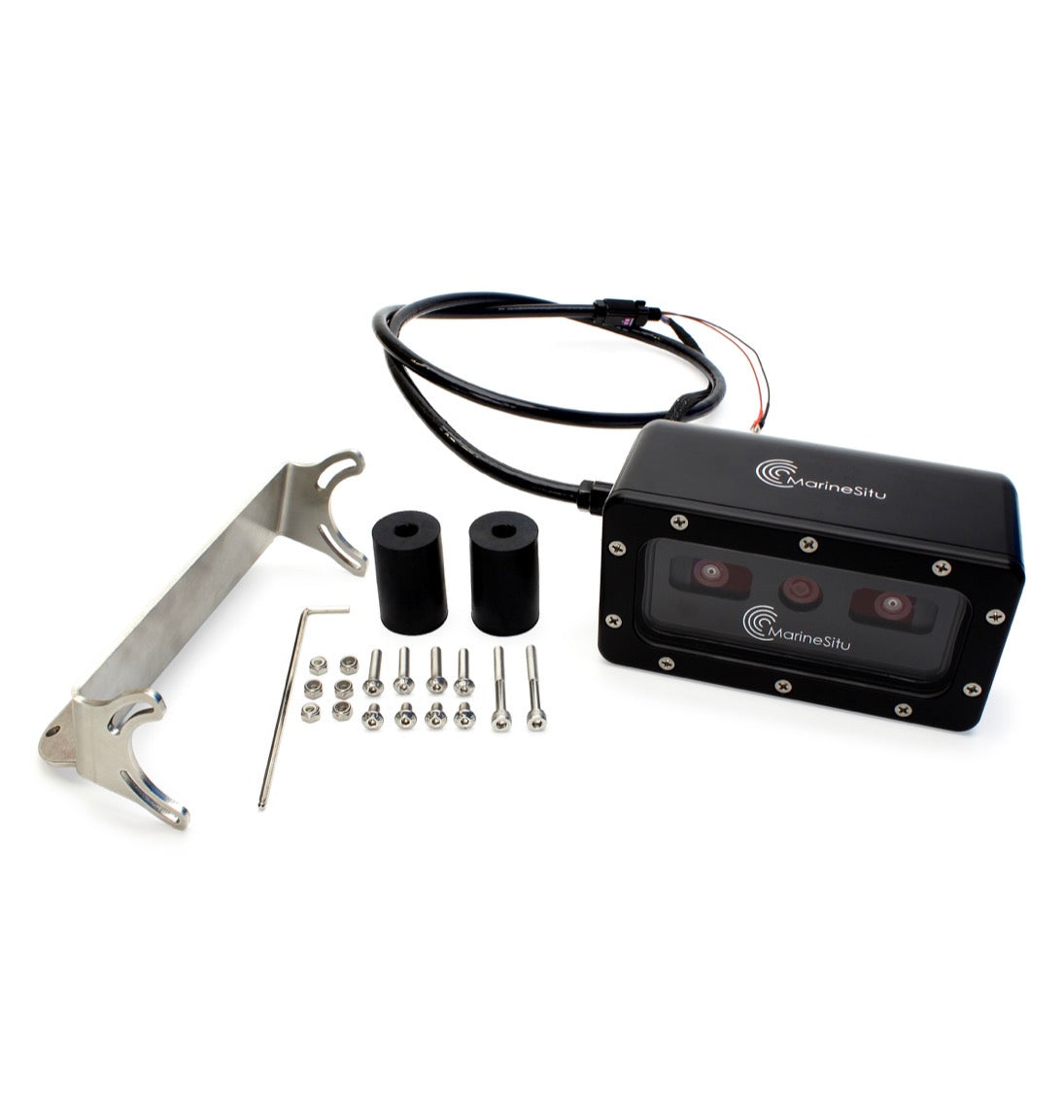

The C3 ships ready to install with a mounting bracket for the BlueROV2 and a preinstalled WetLink Penetrator. It connects over Ethernet, so an onboard Ethernet Switch is required for operation.

Specifications

Parameter	Value
Optical
Camera Model	Luxonis Oak-D W PoE Center: IMX378 Stereo pair: OV9282
Image Resolution	12 MP color camera, 1 MP stereo pair cameras
Frame Rate	Max: 60 FPS color, 120 FPS stereo (1 Gbit bandwidth) Typical¹: 3 FPS color, 5 FPS stereo (15–20 Mbit)
DFOV/HFOV/VFOV	Center: 78.7°/66.5°/52.5° Stereo pair: 89.5°/80°/55.5°
Focal Range	Center: 60 cm–infinity Stereo pair: 18 cm–infinity
Baseline	7.5 cm
Electrical
Input Voltage	12–24V
Power Consumption	3 watt nominal, 5 watt max @ 12V
Communication
Interface	1000BASE-T Ethernet ²
Bandwidth Consumption	Up to 1Gbit (requires gigabit switch)
Cable
Cable Length	1000 ±25 mm
Connector Type	4-position JST GH (Ethernet) Spade (power)

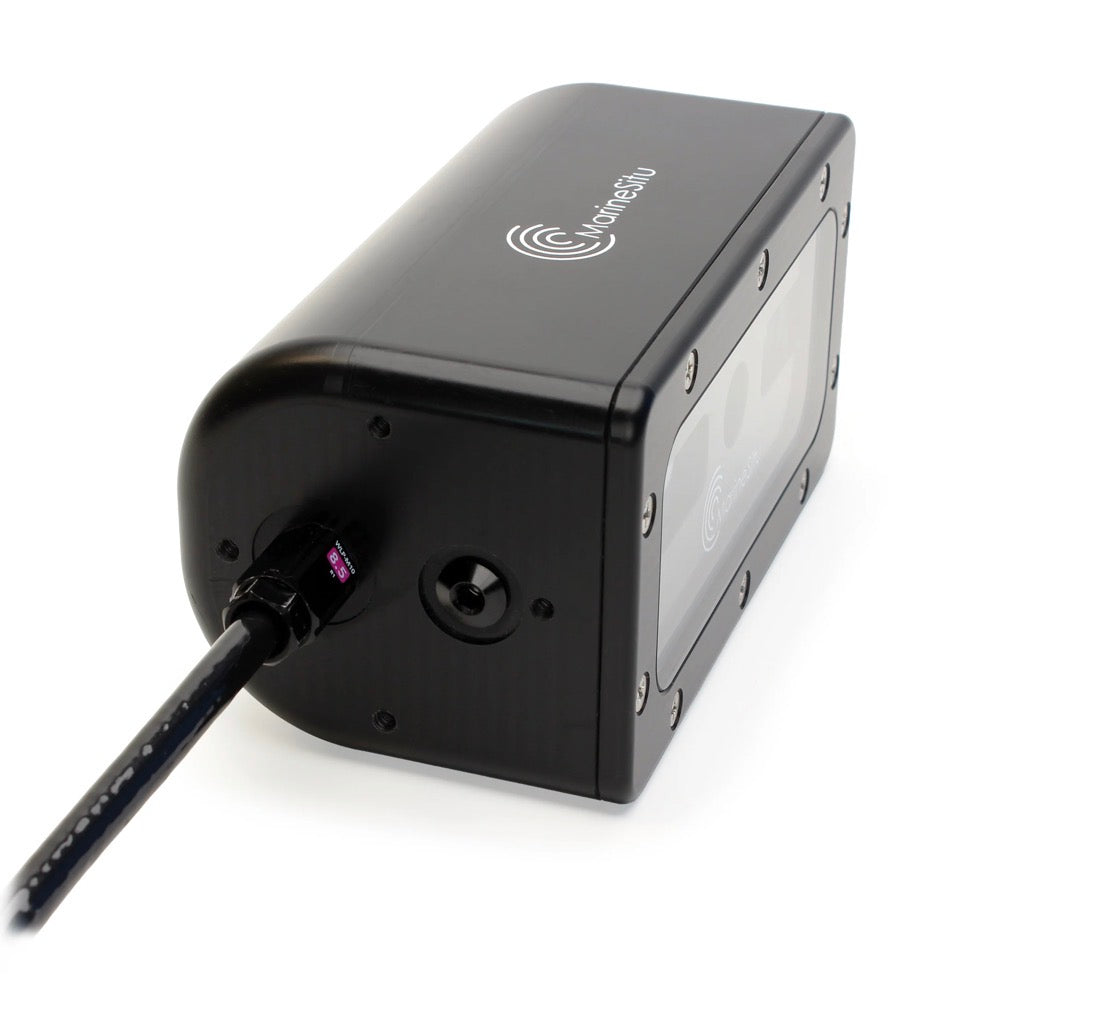

WetLink Penetrator Size	M10-8.5MM-LC
Bulkhead O-ring	AS568-013 Buna-N 70A
Physical
Maximum Rated Depth (seawater)	1000 m
Dimensions (L x W x H)	95 x 165 x 89 mm
Wetted Materials	POM Quartz lens Stainless steel 316 Polyurethane Aluminum Buna N
Weight in Air ³	1700 g
Weight in Water ³	430 g
¹ For live view with BlueROV2 and standard tether. ² BlueROV2 supports up to 100BASE-T. ³ Not including mounting bracket or hardware.

2D Drawings

C3 Stereo Camera

3D Models

MARINESITU_C3_BR-105923 (.zip)

Revision History

16 December 2025

• BR-105923 – Initial release
