Cerulean Surveyor Multibeam Echosounder

Name: Cerulean Surveyor Multibeam Echosounder
Brand: Blue Robotics
Price: 7210.00 CAD
Availability: InStock

$7,210.00 CAD

Sale Sold out

Quantity

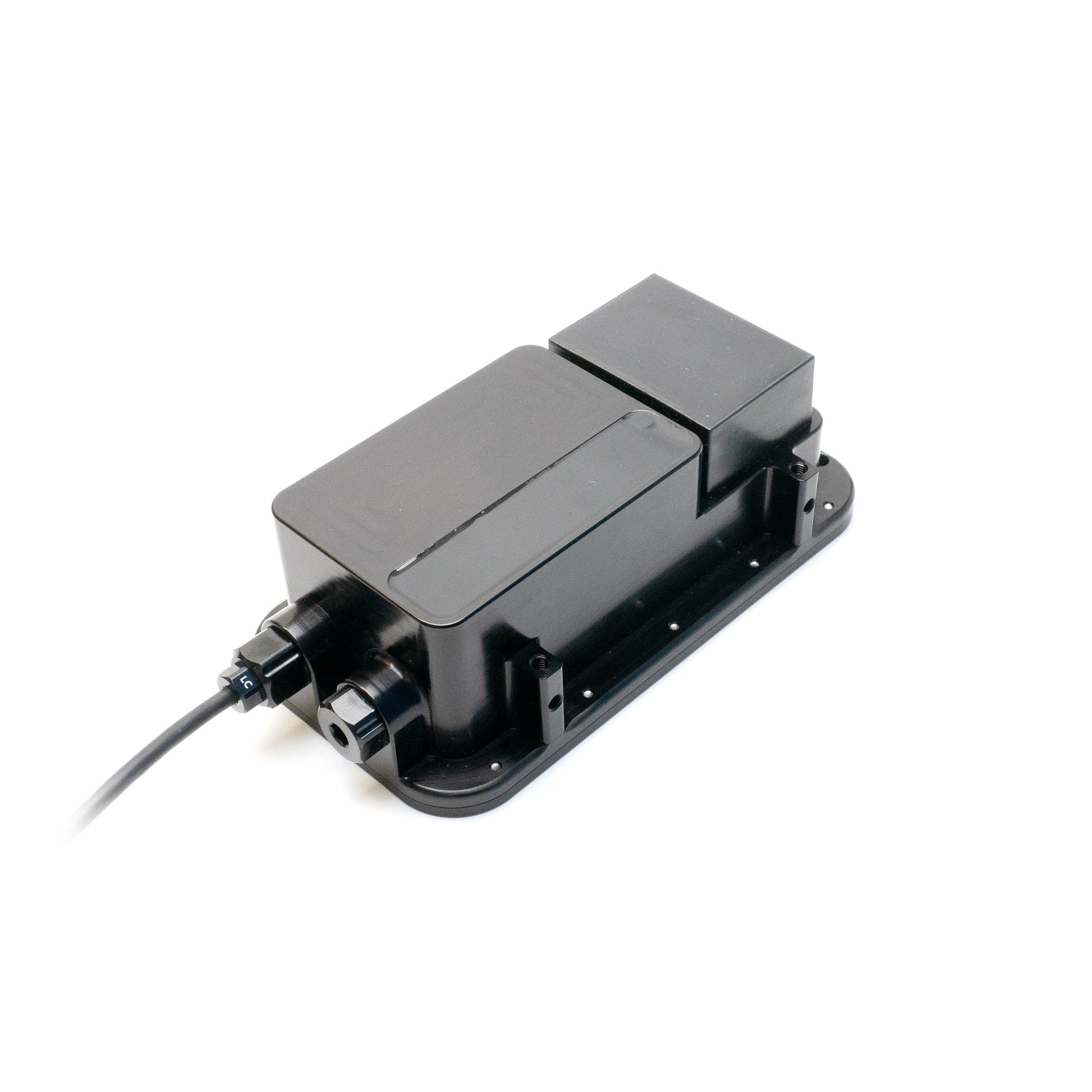

The Surveyor 240-16 is a compact, low-cost multibeam echosounder perfect for the BlueBoat and other small USVs. It has a depth range of 50 meters and a built-in IMU to provide pitch and roll compensation for accurate results, even in rough water. Paired with SonarView software, the Surveyor generates real-time 3D point clouds of the seafloor for bathymetric surveys and mapping.

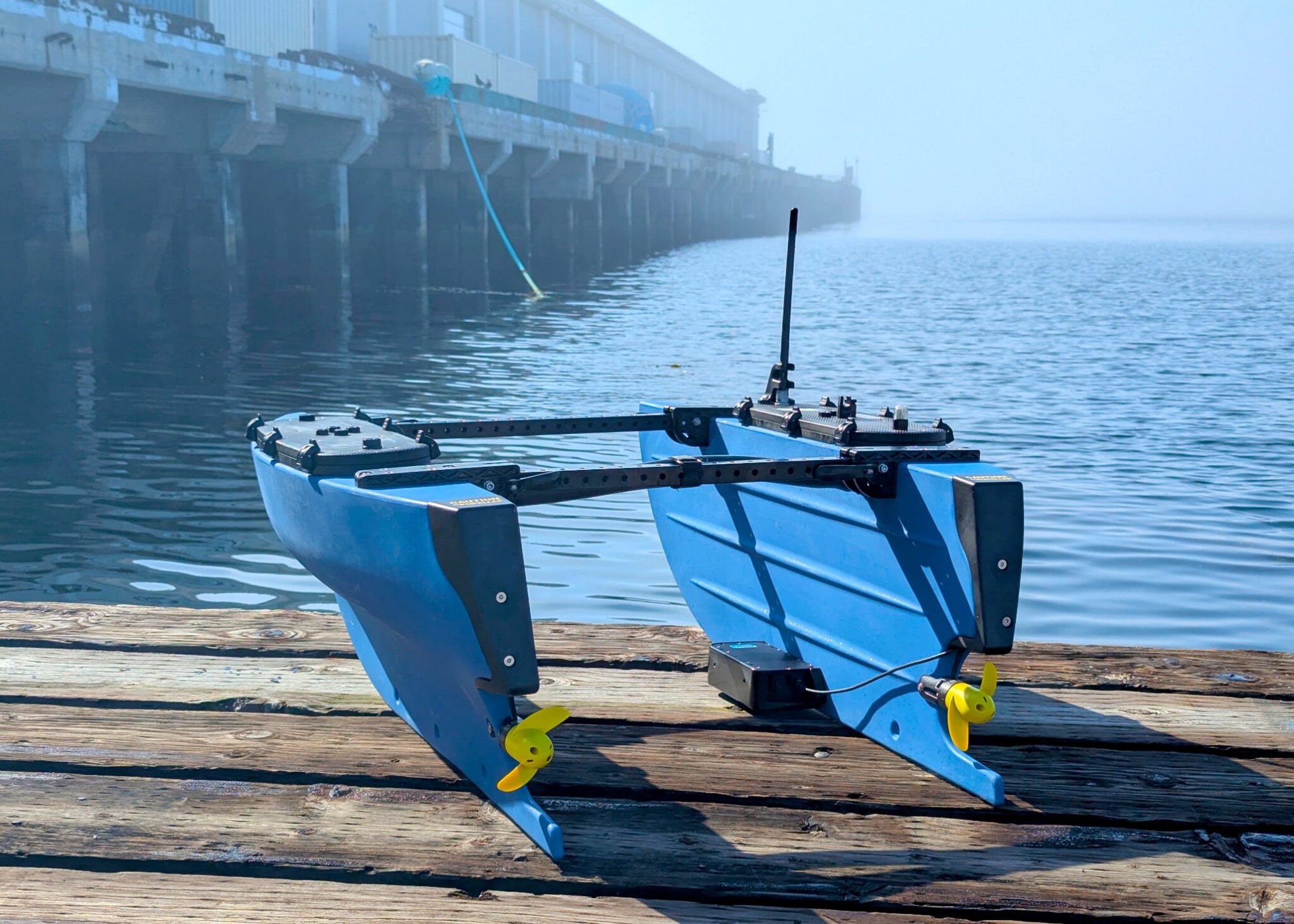

Includes mounting bracket and all hardware and cables needed for installation on the BlueBoat. Requires an Ethernet Switch onboard the BlueBoat for operation.

Product Description

The Cerulean Surveyor is a multibeam echosounder that transforms the BlueBoat into a powerful bathymetry and seafloor mapping machine. What sets the Surveyor apart from other multibeam sonars is its affordability, offering high-precision sonar technology at a fraction of the cost.

What is a Multibeam Echosounder?

A multibeam echosounder is a type of sonar used to map the seafloor or underwater terrain. Unlike a single beam echosounder, which only measures one point of depth directly beneath it, a multibeam echosounder captures many depth points at once to quickly map an area in detail.

Mapping the Depths

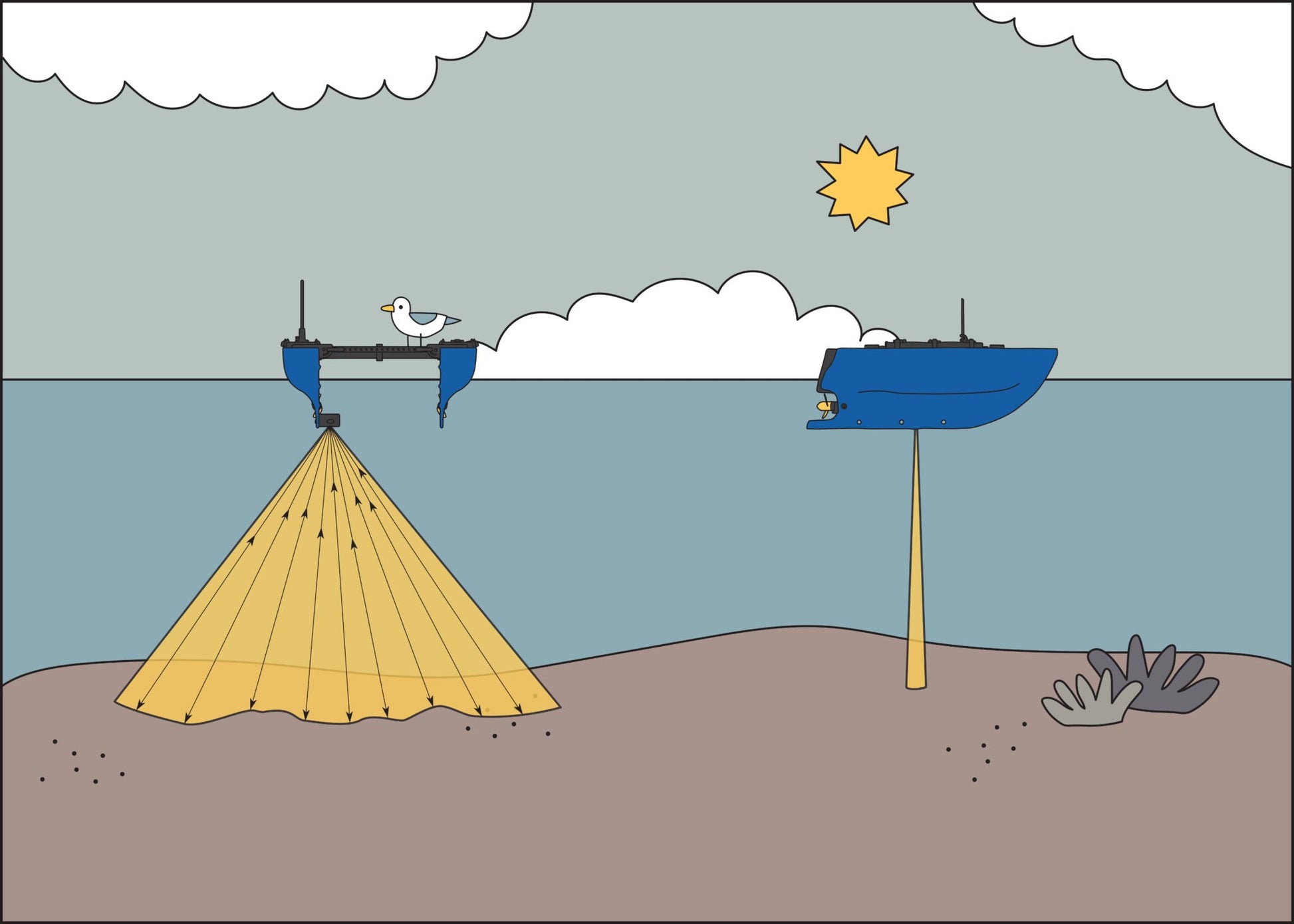

The Surveyor works by sending out 240 kHz sound waves in a wide 80-degree swath, allowing it to map large areas quickly. It then uses a 16-element receive array to listen for the returning echoes. By measuring the strength and time of each return, the system calculates the angle and depth of a wide swath of points on the seafloor from a single ping. It typically measures depths up to 50 meters below the vessel, with even greater range possible in ideal conditions.

Combined with the forward motion of the vessel, these depth points form a point cloud, which is used to create a detailed 3D map of the underwater terrain.

A built-in 9-axis inertial measurement unit provides pitch and roll compensation, so the movement of the BlueBoat won’t distort the data, even in choppy waters. The aluminum housing is depth rated to 300 meters, so it can also be used on AUVs (but this will require different parts!).

1 x Cerulean Surveyor 240-16 Multibeam Echosounder
1 x Surveyor 240-16 mounting bracket
1 x 600 mm JST GH to JST GH Ethernet extension cable (BR-103531)
1 x 400 mm power extension cable (BR-103533)
1 x 5A Mini Blade fuse (BR-101401-005)
2 x Inline snap connector (BR-103548)
2 x M6 nylon insert lock nut (BR-101258)
2 x BlueBoat Hull Mount Bushing
2 x M6x20 socket head cap screw (BR-102241)
4 x M5x18 socket head cap screw (BR-101191)
1 x M10 bulkhead nut & -013 O-ring (BR-100167-010)
1 x 150 mm JST GH to JST GH twisted pair cable
1 x 4-position JST GH to JST GH coupler (BR-100509)
1 x RJ45 to to JST GH adapter

Specifications

Parameter	Value
Electrical
Supply Voltage	10–30 V
Max Idle Power Consumption	5 W
Max Power Consumption	15 W
Acoustic
Transducer Frequency	240 kHz
Along Track TX Beam Width	4°
Cross Track TX Beam Width	80°
Cross Track Beam Width	7° (conventional beamforming)
Cross Track Angular Resolution	1° (angle of arrival)
RX Array Elements	16
Maximum Range	50 m
Range Resolution	0.5% of range setting
Communication
Interfaces	100Base-T Ethernet
Software	SonarView
Application Programming Interface	API docs
Max Bandwidth	450 Kbps
Tools
Compatible Bukhead Wrench	M10 (BR-100977-010)
Bulkhead/Nut Wrench Flats	16 mm
Recommended Installation Torque	3.5 Nm
Physical
Depth Rating ¹	300 m
Recommended Bulkhead Thru Hole Diameter	10.2 mm
M10 Bulkhead O-ring Size	AS568-013 Buna-N 70A
Weight in Air ²	790 g
Weight in Water ²	145 g
¹ Depth rating applies to Surveyor unit only. The pass through WetLink Penetrator at cable end must be replaced to achieve full depth rating. ² Weights are not including mounting bracket or integration hardware.
